SEEDA-CE

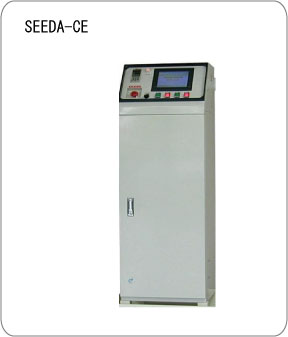

| -CONCENTRATION MEASURING & CONTROLLING PART- | ||
|---|---|---|
 |
Control method | CPU control |
| Measuring method | Measuring method | |
| Measuring range | Free Nitric Acid 0- 20% Cerium(IV) 0-30% |
|
| Measuring Accuracy | Nitric Acid Less than +/-0.2% of measured value Cerium(IV) Less than +/-0.2% of measured value |
|
| Number of production line which the equipment can control | Up to 3 lines | |
| Data display | Color LCD (concentration)） | |
| Cabinet dimensions | 450W×425D×1400H | |
| Weight | Appro×100Kg | |

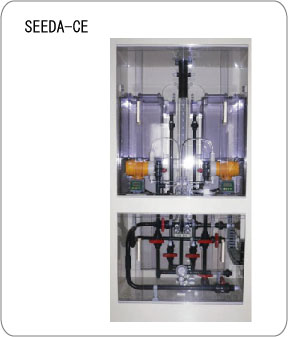

| -CHEMICAL LIQUID METERING & FEEDING PART- | ||
|---|---|---|
 |
Pump control system | Inverter control |
| Metering pump type | Diaphragm type | |
| Metering pump material | PTFE resin | |
| Metering range | 0-300ml/min | |
| Sample liquid circulation pump | Magnet type | |
| Circulation pump material | Circulation pump material | |
| Number of metering pump | ２ | |
| Number of metering pump | １ | |
| Outer dimension | 800W×600D×1600H | |
| Weight | Approx. 100Kg | |

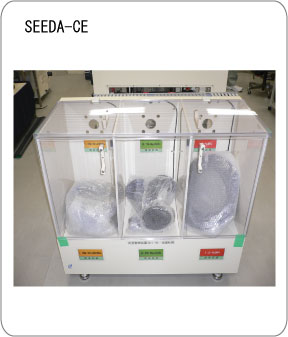

| -REAGENT STORAGE PART- | ||
|---|---|---|
 |
Pump control system | Inverter control | Articles in storage | Reagents for measuring |
| Outer dimensions | 670W×350D×800H | |
| Weight | Approx.50Kg | |
Please, inquire us if your measuring range does exceed the above mentioned range.
