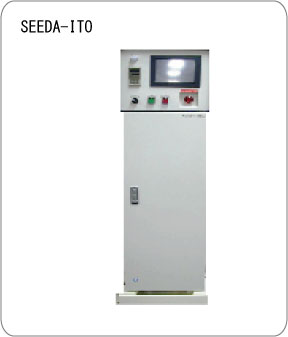

SEEDA-ITO
| -AQUA REGIA TYPE- | |
|---|---|
| Measuring method | Neutralization titration method |
| Model | SEEDA-ITO |
| Chemicals to be measured | Hydrochloric Acid／Nitric Acid |
| Measuring range | Hydrochloric Acid 0-30.00wt % (can be altered) |
| Measuring accuracy | Hydrochloric Acid／Less than +/-0.20wt% of measured valueNitric Acid Less than +/-0.10% of measure value |
| Feeding chemicals | Hydrochloric Acid & Nitric Acid of high concentration |
| Cabinet dimensions | 400W*600D*1610H |
| Weight | Approx100kg |
| -IRON CHLORIDE TYPE- | |
|---|---|
| Detector | Electric potential difference detector |
| Model | SEEDA-ITO |
| Chemicals to be measured | Free Hydrochloric Acid / Iron Chloride (II) |
| Measuring range | Free Hydrochloric Acid 0-30.00wt% (can be altered) Iron Chloride (II) 0-50.00wt% (can be altered) |
| Measuring accuracy | Free Nitric Acid Less than+/-0.05wt% of measured value Iron Chloride (II) Less than+/-0.20wt% of measure value |
| Feeding chemicals | Hydrochloric Acid of higher concentration |
| Cabinet dimensions | 400W*400D*1500H |
| Weight | Approx100Kg |
| -OXALIC ACID TYPE- | |
|---|---|
| Detector | High sensitive magnetic detector |
| Model | SEEDA-ITO |
| Measuring range | 0-5.00wt% (can be altered) |
| Measuring accuracy | 3.40wt% Less than +/- 0.05wt% |
| Cabinet dimensions | 400W*400D*1600H |
| Weight | Approx65Kg |
Please, inquire us if your measuring range does exceed the above mentioned range.
